System requirements for h/p/cosmos para control 6:

  • Personal Computer or laptop / notebook with Pentium IV Processor or higher
  • installed operating system Windows XP SP3, Windows Vista or Windows 7
  • min. 2 GB RAM (4 GB RAM recommended)
  • min. 4 GB free memory on HD
  • VGA-Monitor min. 1280 x 1024, DVD drive, USB port
  • Microsoft® .NET Framework 4.0 and latest Windows® Installer
  • Microsoft® DirectX latest version
  • free RS 232 interface port (or USB with RS232 converter)
  • for connection of any peripheral equipment.
  • RS232 COM port is strongly recommended on the PC/Laptop
  • (USB port and converter not preferred)
  • for control via USB interface an optional converter (not all converters work!) is
  • available at h/p/cosmos
  • running-machine with RS 232 interface and selected coscom v3 protocol

Read manual in full and all warnings and danger precautions of the PC software and of the controlled device (for example running machine) before use!
Consult a doctor before using this device. WARNING: Heart rate monitoring systems can be inaccurate.
Incorrect and/or forbidden use and/or overtraining can lead to serious injury or even death.
If you feel close to fainting, the training has to be stopped immediately. If you feel sick or dizzy, stop training immediately and consult a doctor.
Always warm up fully at walking speed before starting to run. End training by pressing the stop button - only use the emergency stop in an emergency.
Installation, commissioning, instruction and maintenance only to be conducted by h/p/cosmos trained and authorised personnel.
For running surfaces with L: 200 x W: 75cm or bigger, special applications, at higher speeds, for subjects with higher risk of falling, where a fall would lead to unacceptable risks (e.g. invasive probes during exercise or recent hip replacement), or if there is not enough safety space behind the treadmill, a fall prevention system (e.g. safety arch with harness & chest belt) is obligatory.

Keep min. safety space of L: 2 m (78.74") x W: 1 m (39.37") or the width of the treadmill (if the treadmill is wider) behind treadmills!
No children on or near to treadmills.

Attractive new features for MCU6 UserTerminal for the new h/p/cosmos® treadmill and torqualizer® 1200 ergometer series:



  1. Stroop Test, dual tasking, cognitive skills, country flags, capitals, “word salad” and mathematic tasks in various levels
  2. perceived exertion with BORG, modified BORG and pain scale
  3. cursor function for scanning data second by second and comparing with overlay file
  4. optional upgrade to gaitway 3d including 3-component force (Fz, Fx, Fy), torque, pressure distribution (incl. foot rotation and roll off analysis etc), “virtual split belt” function and interface combination with 3D Motion Capture (MoCap), EMG ElectroMyoGraphy, video, IMU Inertial Measurement Unit, etc. (not for torqualizer ergometer)
  5. optional perturbation mode (not for torqualizer ergometer)
  6. optional metronome function for acoustic cueing (not for torqualizer ergometer)
  7. step count, step length and step frequency / cadence function and display (not for torqualizer ergometer)
  8. screenshot function (.PNG) for point of interest saves picture of the screen on USB stick and in the summary report

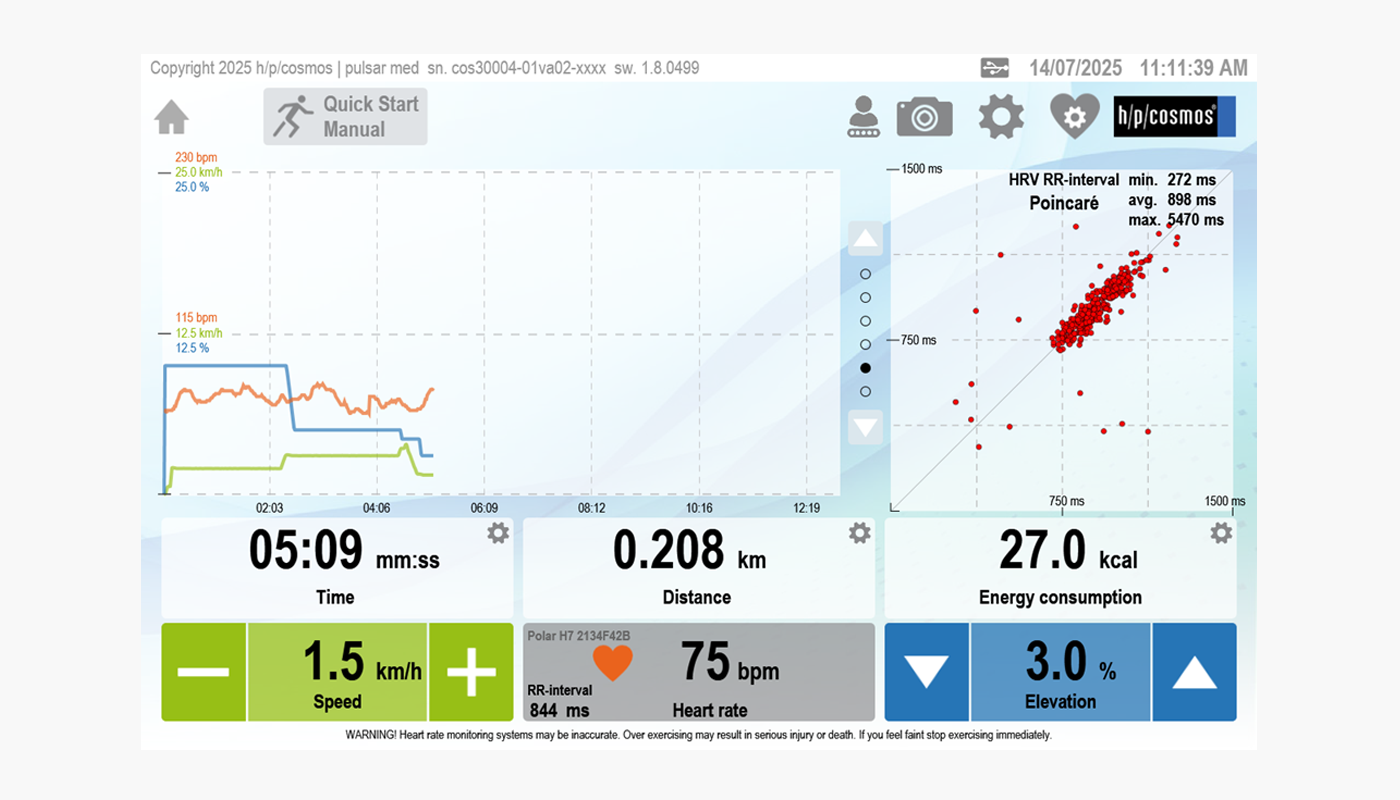

  9. new scales for the graphs of load/heart rate parameters and Poincare HRV display
  10. treadmill/ergometer serial numbers and firmware version in the screen
  11. summary report export in PDF and .csv spread sheet with 1 button only
  12. new summary report in table form with valuable data for better traceability and data management, also including now the screenshots made during the tests and exercise.
  13. exported files (PDF, .CSV) with clear file name proposal incl. date code, treadmill model name and serial number, etc.
  14. step count, step length and step frequency (cadence) function and display
  15. changeable displays e.g. with count down display for various parameters
  16. included exercise profiles scalable and editable and free memory space for user defined exercise profiles
  17. included test profiles / protocols such as Bruce, modified Bruce, Graded Test, Naughton, Cooper, Balke, Super Balke, Ellestad A, Ellestad B, Gardner, UKK 2 km WalkTest, Conconi, Ramp, Fitkids, Chester Treadmill Walk, VO2 / 10k, VO2 / 11k, VO2 / 12k, VO2 / 14k, various Interval Tests incl. progressive interval, various Pyramid Tests, Hochfelln mountain protocol, etc.
  18. optional import of GPS data to convert to treadmill profile
  19. personalization with customer logo in screen and in PDF workout print, personalized screensaver
  20. interface with RS232, LAN / RJ45, USB, HDMI, optionally Bluetooth®, NFC/RFID, WiFi, FTMS for great connectivity with ECG stress test and VO2 max. CPET Cardiopulmonary Exercise Testing equipment and fitness testing equipment
  21. digital (e.g. POLAR H10 BLE) and analogue (5 kHz) heart rate monitoring receiver integrate
  22. 10.1” capacitive TouchScreen with great haptic
  23. additional hardware keyboard film in UserTerminal for safe control even with wet fingers (sweat) or with medical gloves
  24. optional SmartPhone holder also retrofittable on VESA connection
  25. export functions for optional settings, logfiles, error history, etc. for excellent serviceability and diagnosis
  26. optional integrated speaker e.g. for acoustic cueing e.g. for metronome

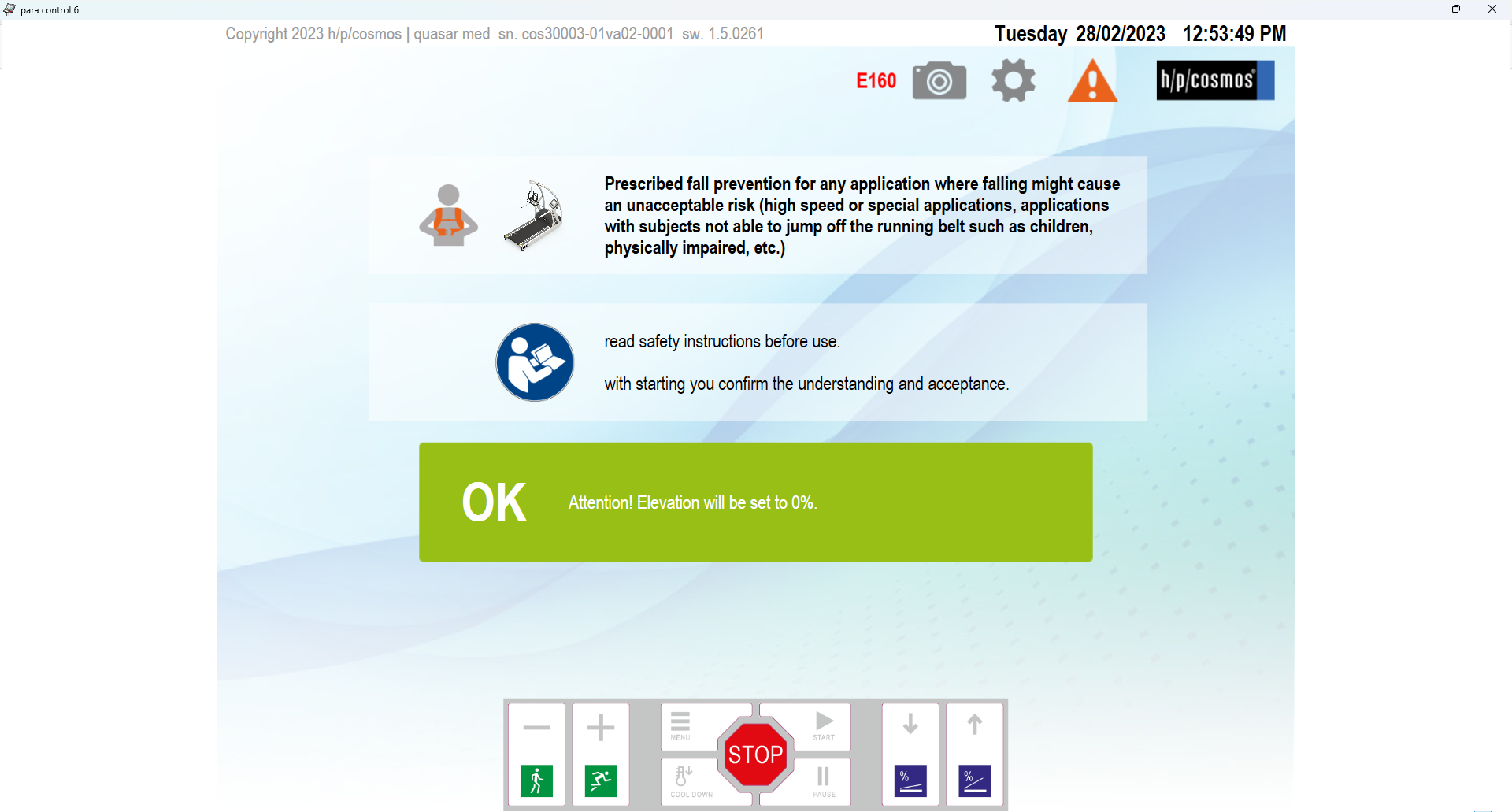

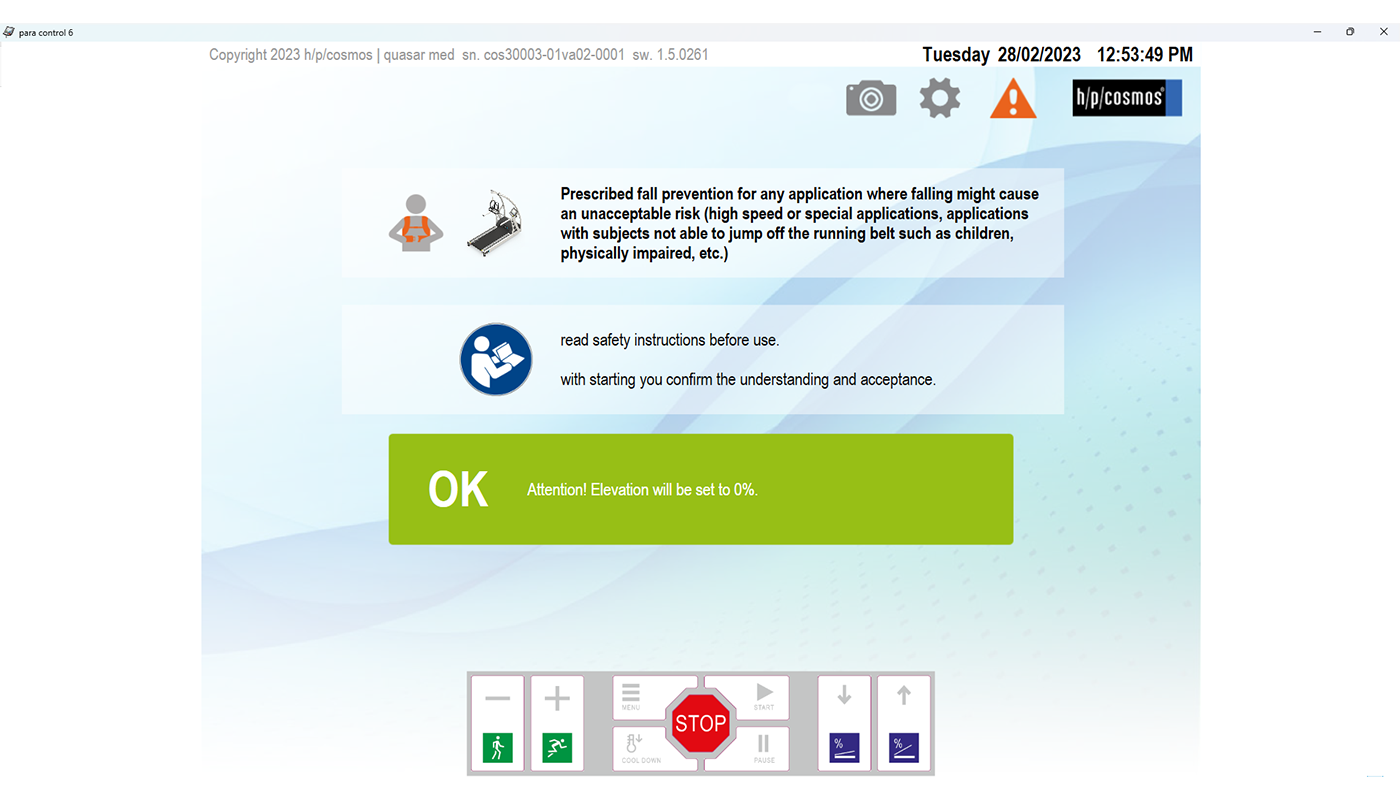

  27. optional h/p/cosmos para control PC Windows® software for observation and remote control from host PC
  28. coscom® v4 interface protocol accessible via RS232, LAN or USB for safe excellent connectivity validated based on standards EN 62304, ISO 14971 and Cybersecurity. coscom_v4.dll available with detailed description available on www.coscom.org



... and many more …

Available soon, some as options for MCU6 from software version 1.7

h/p/cosmos® … German engineering since 1988.    ahead of time®!



Downloads:

  1. video MCU6 features and screenshots during Cardio mode: https://cloud.hpcosmos.com/s/ER74WXk55jgeCkX
  2. ZIP file with many MCU6 pictures and screenshots: https://cloud.hpcosmos.com/s/aDaEa9Ncp8D8sLp
  3. video workshop MCU6 overview with application specialist Dr. Björn Zimmermann:

https://www.hpcosmos.com/sites/default/files/uploads/videos/20240418_hpcosmos_webinar_theuserterminal_mcu6_overview_faq_0.mp4

  1. video workshop MCU6 perturbation with application specialist Dr. Björn Zimmermann:

https://www.hpcosmos.com/en/news/webinar-perturbation-module-gait-stability

https://www.hpcosmos.com/sites/default/files/uploads/videos/20240507_hpcosmos_webinar_perturbation_mcu6_1080p.mp4

  1. perturbation brochure for gait stability and fall prevention training: download
